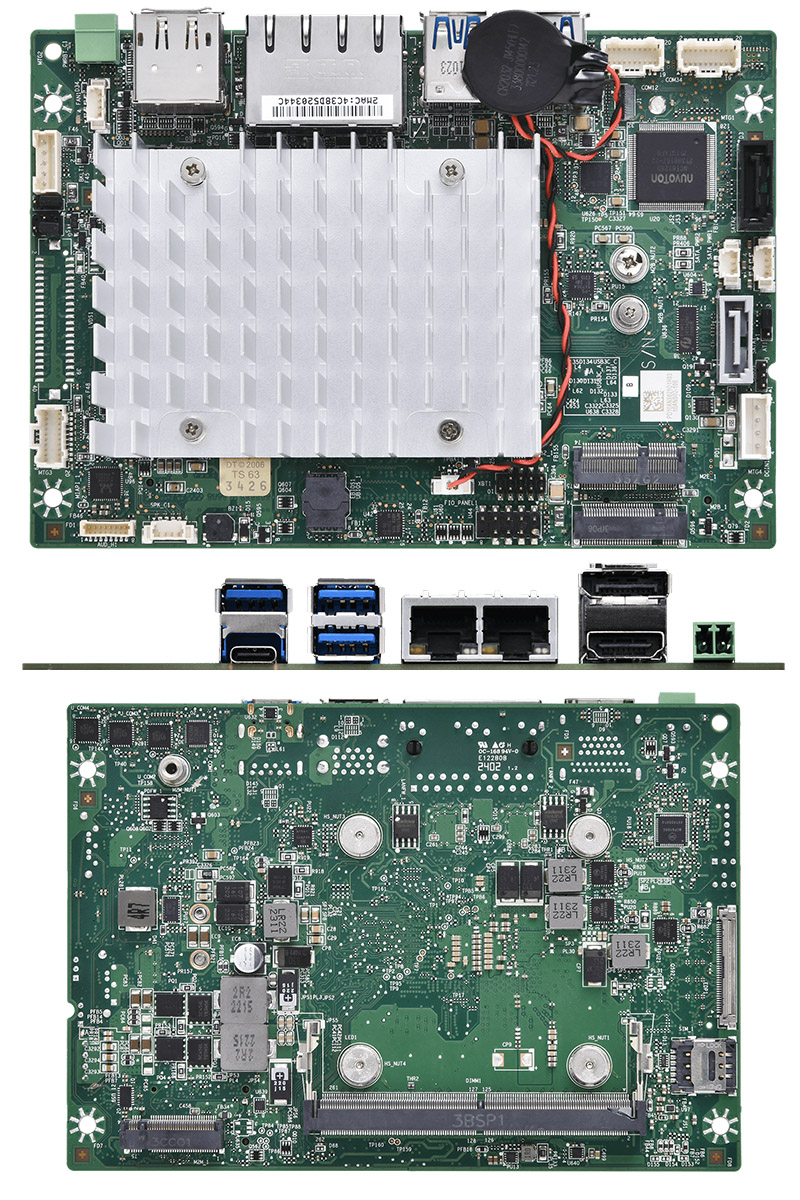

Mitac PD10ANS-N305 3.5-SBC (Intel Alder Lake i3-N305 8x3.8Ghz CPU, 8-26VDC) [FANLESS]

Mitac PD10ANS-<b>N305</b> 3.5-SBC (Intel Alder Lake i3-N305 <b>8x3.8Ghz</b> CPU, 8-26VDC) [FANLESS]
  • Intel Alder Lake !
  • Dual INTEL LAN !
  • Multi expansion Slot !
  • 3,5" SBC !

  • Intel® Alder Lake-N N97 (4C) / i3-N305 (8C8T) Processor
  • 1 x DDR5 SO-DIMM and support up to 16GB
  • Support Triple display for LVDS (optional eDP), HDMI, and DisplayPort
  • 2 x Intel® i226 2.5Gigabit Ethernet
  • 1 x M.2 B Key, 1 x M.2 M Key, 1 x M.2 E Key slot
  • 2 x USB 2.0, 3 x USB 3.2 Gen2 and 1 x USB Type C
  • 8V~26V wide voltage power input


Share

479.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:
MECHANICALFORM FACTOR3.5" SBC: 4” x 5.8” (102 mm x 147 mm)
SYSTEMPROCESSORIntel® Alder Lake-N N97 (4C) / i3-N305 (8C8T) Processor
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR5 4800 MHz / 1 x 262-pin SO-DIMM / Max. 16GB (Non-ECC)
GRAPHICSIntel® UHD Graphics
ETHERNET2 x Intel® I226-V 2.5G LAN
AUDIORealtek® ALC256
I/O CHIPSETNuvoton NCT6126D
TPMNuvoton NPCT760AABYX TPM2.0
EXPANSION SLOTStorage/LTE/5G Slot: 1 x M.2 2242/3042/3052 B Key (USB2.0/PCIeX1/SATAIII) / Storage: 1 x M.2 2280 M Key (PCIeX1/SATAIII) / Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0)
BIOSAMI BIOS
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan
GRAPHICS

HDMIUp to 4K (3840 x 2160) @30 Hz
DISPLAYPORTUp to 4K (4096 x 2160) @60 Hz
LVDSUp to 1920 x 1200 @60 Hz
eDP (Option)Up to 5120 x 3200 @60 Hz
REAR I/OUSB3 x USB 3.2 Gen 2 / 1 x USB Type C (Support PD15W, 5V/3A, DP Alt mode, USB3.2 Gen1)
DISPLAY I/O1 x HDMI 1.4 / 1 x DisplayPort 1.4b
AUDIO I/O -
LAN I/O2 x RJ-45
SERIAL PORT-
PS/2 PORT-
OTHERS1 x 2PIN Remote Power on/off Terminal Block
INTERNAL CONNECTORSSTORAGE 2 x SATAIII / 2 x SATA power header *1 SATA port Multiplexed with M.2 B key SATA
USB2 x USB 2.0
DISPLAY I/O1 x LVDS (*Optional eDP SKU available)
/ 1 x Backlight Connector
AUDIO I/O1 x speaker header Header with amplifier / 1 x Audio Header (Front Panel Mic-in & Line-out)
SERIAL PORT3 x RS232 / 1 x RS232 / 422 / 485
MiAPIProgrammable header (support 10 x GPIO, 1 x SMBUS, 1 x UART, 1 x Watchdog) with API library supported for Windows OS
FAN1 x 4-pin System Fan Header
POWER1 x AT / ATX Mode Select Jumper
/ 1 x 8~24V ATX Power Connector
OTHERS1 x CMOS Jumper
/ 1 x Chassis Front Panel Header (2 x 5-pin)
/ 1 x panel power select header
/ 1 x backlight power select header
/ 1 x Buzzer
POWER REQUIREMENTPOWER INPUT8~26V Wide Range DC Input w/ 4-pin Power Header (Pitch: 2.5mm)
ENVIRONMENTALOPERATING TEMPERATURE-25~60°C with 0.7m/s Air Flow (w/ Wide Temp. SSD/RAM)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTLinux (support by request) / Ubuntu 20.04 / Windows® 10 64-bit / Windows® 11 64bit,
PACKING LISTPACKAGE1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable / 1 x Motherboard
