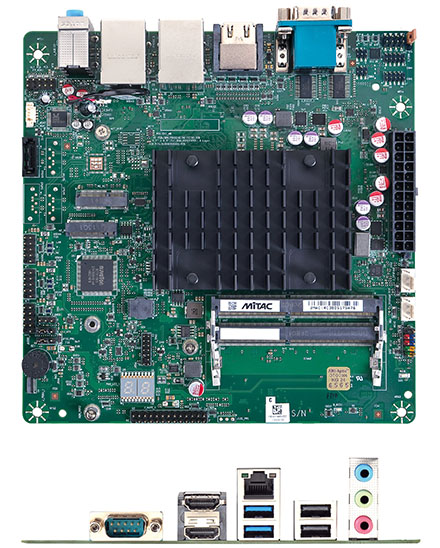

Mitac PD14EHI-N6210 Mini-iTX (Intel Celeron N6210 Elkhart Lake , ATX 24-pin)

Mitac PD14EHI-N6210 Mini-iTX (Intel Celeron N6210 Elkhart Lake , <b>ATX 24-pin</b>)
  • Intel Elkhart Lake !
  • Celeron N6210 !
  • Dual Display !
  • PD14RI successor !

This board is produced by MITAC, the OEM producer of Intel D2500HN. This board is based on Intel D2500HN, but is equipped with the moderm Intel Elkhart Lake plattform and available until at least 2025.

  • Intel Elkhart Lake Celeron N6210 BGA Processor (Up to 2.6GHz)
  • Support 2 x DDR4 SO-DIMM (Up to 32GB)
  • Support Dual Display for HDMI
  • Support 1 x M.2 2242/2280 M-Key (SATA, PCIe X2), 1 x M.2 2230 E-Key, and 1 x SATA III
  • 7 x USB2.0, 2 x USB3.2 Gen2, 1 x COM and 1 x MiAPI (configurable digital I/O)
  • ATX 24-pin power input


Share

169.95 EUR
incl. 19% VAT, plus shipping
In Stock (10 pcs)
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
FORM FACTORMini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
PROCESSORIntel® Elkhart Lake Celeron N6210 Processor
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR4 3200 MHz
/ 2 x 260-pin SO-DIMM
/ Max. 32GB (Non-ECC)
GRAPHICSIntel® UHD Graphics
ETHERNET1 x Realtek® RTL8111H Giga LAN
AUDIORealtek® ALC888 Co-Lay ALC897
I/O CHIPSETNuvoton NCT6126D(eSPI)
TPMTPM Header / (support optional TPM module board NPCT750)
EXPANSION SLOTM.2 2242 / 2280 M key (SATAIII, *PCIe X2)
/ **support M.2 M Key NVMe SSD
/ 1 x M.2 2230 E key (PCIeX1, USB 2.0)
BIOSAMI BIOS
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan / System Fan
VGA-
DVI-
HDMIUp to 4K (4096 x 2160) @30 Hz
DISPLAYPORT-
LVDS-
eDP (Option)-
USB2 x USB 2.0
/ 2 x USB 3.2 Gen 2
DISPLAY I/O2 x HDMI 1.4
AUDIO I/O1 x Mic-in
/ 1 x Line-out / 1 x Line-in
LAN I/O1 x RJ-45
SERIAL PORT1 x RS232
PS/2 PORT-
OTHERS-
STORAGE1 x SATAIII / (4 x SATA III by customized sku)
USB5 x USB 2.0
DISPLAY I/O-
AUDIO I/O1 x Stereo Speaker Header
/ 1 x Audio Header (Front Panel Mic-in & Line-out)
SERIAL PORT-
PARALLEL PORT1 x MiAPI Header
GPIO-
FAN1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
POWER1 x 24-pin ATX Power Connector
/ 1 x AT / ATX Mode Select Jumper
OTHERS1 x CMOS Jumper
/ 1 x Buzzer
/ 1 x FIO header
POWER INPUTATX 24-pin
OPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / UKCA / FCC Class B
OS SUPPORTWindows® 11 64bit, / Windows® 10 IoT LTSC 64bit (LTSC 2021) / Ubuntu 22.04 / Linux (support by request)
PACKAGE1 x Motherboard / 1 x 50 cm SATA Cable / 1 x Quick Installation Guide / 1 x I/O Bracket
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
